IsatHub - The SmartPhone Hub

The IsatHub is Inmarsat’s L-Band service newest and most exciting satellite connectivity device to date.

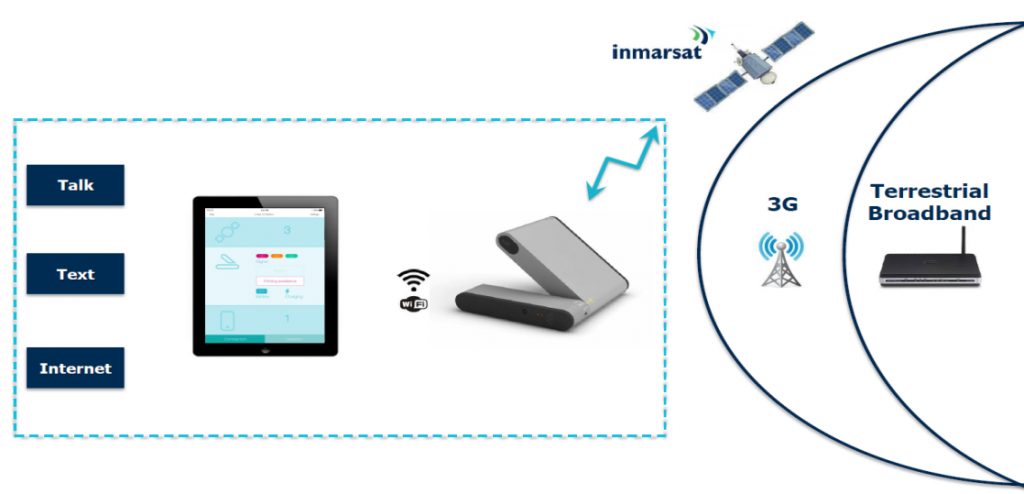

The IsatHub allows users to use their own smartphone, tablet or iPad to connect via satellite for voice and fast data communication anywhere in the world.

IsatHub, more than just a WiFi hotspot…

IsatHub comparison – IsatHub vs. Iridium Go
The Iridium Go! is the Iridium competitor to the all new IsatHub. It will challenge the IsatHub for voice quality but lacks in data power.

Features & Function - Not Just a Hotspot

The IsatHub is easy to setup combined with a 30 meter / 100 feet WiFi range.

Dedicated iOS and Android apps will make connecting a breeze leaving you with instant high data, internet,voice and text capabilities at a touch of a button.

IsatHub - A new era in smartphone connectivity

The IsatHub is easy to setup and combines a 30 meter / 100 feet WiFi range for ease of use. Dedicated IOS (Apple) and Android apps will make connecting using your smartphone a breeze leaving you with instant real-time, high data, internet,voice and text capabilities at a touch of a button.

Main features: smartphone and tablet hotspot for voice and internet coverage via your smartphone and tablet device. Easy to share with wifi and user ID management on all smartphone apps.

Easy to use: Quick and Easy to set up in minutes with pointing up port within your smartphone application or using the LED guides. Compact and portable. Place wherever you want with IP65 rating and 30 meter / 100 feet WiFi range.

Reliable network connectivity: Coverage is over the global Inmarsat-4 satellite network

Manage your costs: Avoid mobile data roaming shock and stay on top of your data costs with the data dashboard application. Manage access by data type, usage type or per user.

IsatHub will empower you to take your audience withyou, wherever the news is breaking now.

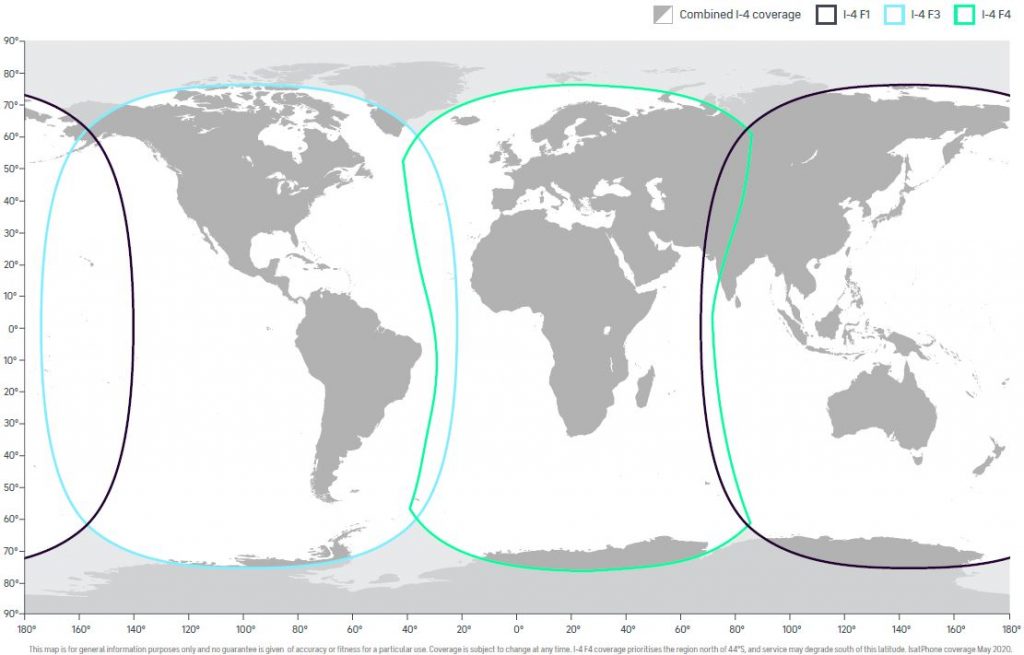

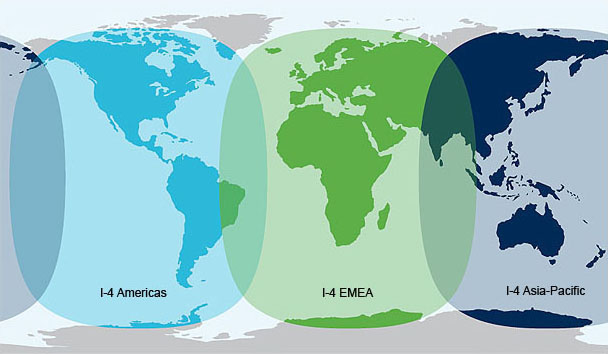

The Inmarsat Constellation of F4 Geostationary Satellites.
If you are within the colored regions, you have coverage with the IsatHub Wireless Satellite Terminal.

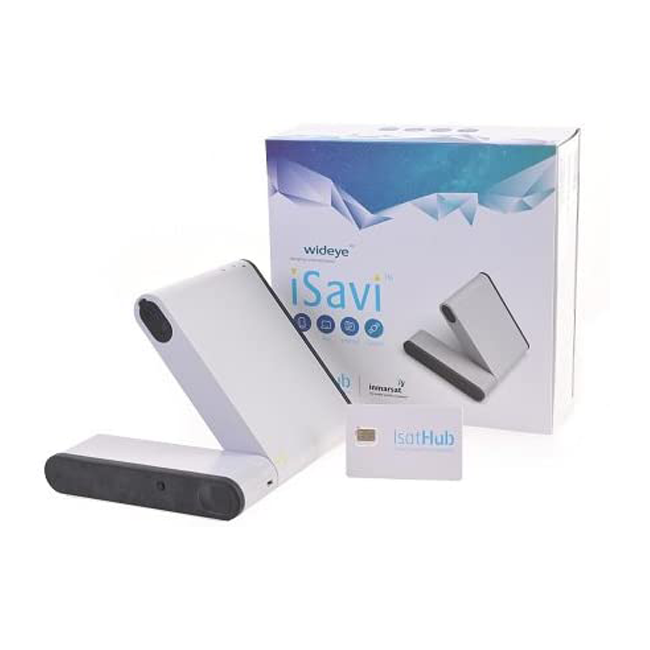

What is included in the Box:

Terminal and Standard battery
Quick start guide in 8 languages
Power supply ( with int. AC adapter kit) and cables

SPECIFICATIONS

Weight: 880 grams / 1.94 lbs
Dimensions: LxWxD: 180 x 175 x 30 mm / 7.09″ x 6.69″ x 1.18″ inches
Interface – Device Ports: Power Port ; USB Mini Port (for use of Firmware updating only)
AC Power input 100 – 240 VAC, 50-60 Hz, output +18 VDC, 65 watt (comes with international AC adapter kit)
DC Power (vehicle adapter)
Battery: Standard 10.8V @ 3Ah Li-ion Battery Pack Operating time: 2.5 hours Standby time: 24 hours
WiFi Range: up to 30 meter / 100 feet. Wi-Fi 802.11 b/g/n Access Point with internal Wi-Fi Antenna. Default is 802.11b … Can be changed from iSavi Web Interface. Can connect up to 20 Wi-Fi users at a time
Security WiFi password control. Web Interface Type in 192.168.1.35 or the word “isavi” into any connected browser to access iSavi web interface.
MAC address filtering
Firewall pre-set selections, configured from the web user interface
Connection speeds: Standard TCP-IP up to 240 kbps up and 384 kbps down
Network availability 99.9% of the time
Global coverage
Frequencies
Satellite Transmit: 1626.5 – 1660.5 MHz and 1668 – 1675 MHz
Satellite Receive: 1518 – 1559 MHz
GPS Frequency: 1574.42 – 1576.42 MHz
Flip-up Antenna with visual pointing indicators
USB port for firmware updates only
LED arrows for pointing assistance
Personal Alert Button – Send emergency message at a touch of a button
Built in SIP server with auto-connecting to hosted or HQ SIP capable system
Up to 8 hours standby, 2 hours transmit (at max. power 100% of the time). Power consumption is low and the battery can be recharged by an AC power adapter/car charger/ Sherpa 50 rechargrable powerpack or by a suitable solar panel.
User friendly operation via Smart Apps. Control App & Voice App, available free from Apple App Store and Google Play Store
IsatHub will support any off-the-shelf apps that work over an IP (Internet) connection
Voice calling with VoIP, call any phone worldwide
Satellite Phone App Calling via Smartphone App – Standard Circuit Switched PSTN Call (not VoIP). Available free from iTunes and Google Play app stores
IsatHub is issued international satellite phone number with (870) country code.
Works with contact list on smart devices
Short Message Service (SMS): Up to 160 characters (standard) Larger SMS content (>160 characters) Supported as multipart or segmented SMS
Secure communications (text, voice,video,conferencing,file transfer, location sharing) with our YES Secure Network on Android, iOS, iPad, iPod. iPod Touch, Linux, Windows, Apple/Mac
Environmental:
Operating Temperature: -25°C to +55°C (with DC supply), -20°C to +55°C (with battery)
Storage Temperature: -40°C to +80°C (Tansreceiver), -20°C to +40°C (Battery), -20°C to +40°C (Transreceiver with battery)
Battery Charging Temperature: 0°C to +40°C
Storage Humidity: 95% RH (non-conensing at +40°C)
Ingress Protection: IP65 Compliant (dust & splash resistant)
UV resistant
Compliance: FCC, CE, Industry Canada (IC), RoHS2 Compliance, WEEE, CMPCS MOU-ITU Registry, Inmarsat Type Approval, UL/IEC, UN, CE (battery pack safety).

CONTROL APP FEATURES

Pointing assistance
Signal strength indicator
Network registration
Data management (ability to switch off data)
Firewall management
User help
Battery /AC status indicator
OS systems: iOS 6 & 7 (iPhone 4 or newer and iPad 3 or newer); Android 4.1 onwards
UT Temperature indicator
MAC address management
UT Support
Personal alert button

VOIP APP FEATURES

BGAN- Specific error handling
Auto Sip registration (with SIP proxy in UT)
VoIP and text over background IP
work with contracts on Smartphone
Call duration

The IsatHub brings ultimate data and voice communication via your existing smartphone, tablet or iPad.
Contact us and we will talk through your requirements depending on the type of travel or journey your going on. You’ll get the best advice and service.
